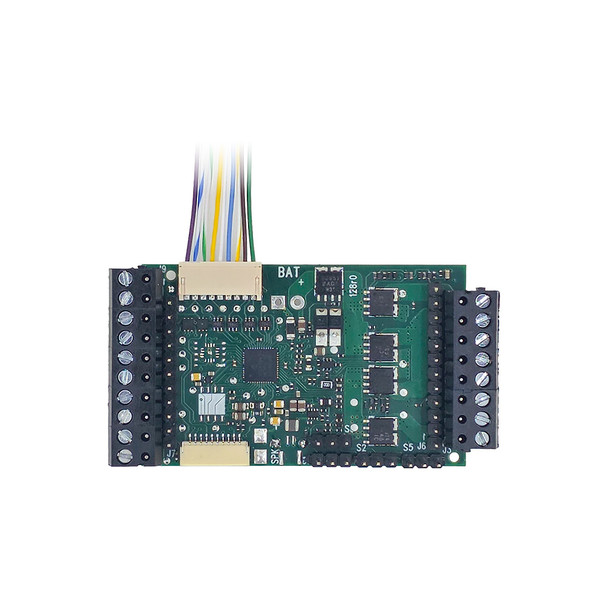

Digitrax DG7128 Series 8 Large Scale DCC Decoder - US-type Pin Header and Screw Terminals

• High current motor drive capacity. Suitable for G scale locomotives with total motor stall current up to 7 amps, including multiple motors.
• Primary 8-Pin and 10-pin screw terminal 3.5mm plugs for for wiring track, motor and function control, allows decoder to be moved between different locomotives.
• Secondary 11-pin/12-pin 0.1” pitch headers for some compatible DCC Plug AristoCraft and Bachmann locos.
• Digitrax FX7 Functions-Control lights and functions for prototypical lighting effects and on/off control.
• Series 8/7 XF7 Enhanced Decoder Features.
• FX7 4 onboard 9G Servo plugs, with capability for controlling 6 more servos.
• FX7 variable PWM function lead capability for lighting control.
• Firmware may be user updated using a Digitrax USB equipped Command Station with Sound Loader software in decoder IPL mode.
• Digitrax LocoMotion® System – Lets your trains run like the real thing!
• 2 Digit and 4 Digit Addressing.
• Basic, Advanced & UniVersal Consisting.
• SuperSonic motor drive for quiet operation.
• Direct and Operations Mode programming.
• Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment. Decoder Reset by CV8, with or without speed table reset.
• Transponder Equipped ready for transponding ID on your layout.
• Power-on Motor Isolation Protection, helps prevent damage to your decoder.
• Adjustable Over temperature shutdown to protect decoder.
• Heatsink installation option to remove heat, allowing higher ambient temps and current loads before over temp shutdown.
• DCC Compatible.
• FCC Part 15, Class B RFI compliant.
• Operates on DCC track voltage 9V minimum. to 22V maximum.

Series 7 Decoder Features

• Digitrax Easy Connect 9-Pin Socket for track, motor and function control, allows decoder to be moved between different locomotive interfaces.
• Series 7 Enhanced Decoder Features.
• Firmware may be user updated using a Digitrax USB equipped Command Station with Sound Loader software in decoder IPL mode.
• Digitrax FX7 Functions-Control lights and functions for prototypical lighting effects and on/off control.
• Configurable FX7 Pulse Function available on all function outputs.
• Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment
• Works with PX112-10 Power Extender, up to 15V maximum on track
• Digitrax LocoMotion® System Lets your trains run like the real thing!
• 2 Digit and 4 Digit Addressing
• Basic, Advanced & UniVersal Consisting
• SuperSonic motor drive for silent operation
• Direct and Operations Mode programming
• Decoder Reset by CV8, with or without speed table reset
• Transponder Equipped ready for transponding ID on your layout
• Power-on Motor Isolation Protection, helps prevent damage to your decoder
• Operates on DCC track voltage 9V minimum to 18V maximum
• Compatible with Digitrax PX series Power Xtenders to keep locos running in the presence of dirty/poor track work.

DigitraxLocoMotion® System-Your locomotives look like the real thing.

• The Digitrax LocoMotion System makes them run like the real thing, too!
• Torque Compensation for smooth as silk silent operation.
• 128 Speed Step operation (14 or 28 steps can also be used).
• Momentum with acceleration and deceleration.
• Normal Direction of Travel is user selectable.
• Switching Speed feature for easier and faster access to yard speeds.
• 3 Step Speed Tables set start, mid and max voltage for custom control.
• 28 Step Speed Tables with 256 level resolution for precise control.
