Name: TCS 1552 IMFP4-NF DCC Decoder - N Drop-in Board for Post-2014 InterMountain FP7A with wired motors
Brand: TCS - Train Control Systems
SKU: 3457
Price: 47.16 USD
Availability: InStock

TCS 1552 IMFP4-NF DCC Decoder - N Drop-in Board for Post-2014 InterMountain FP7A with wired motors

(No reviews yet) Write a Review

UPC:

879508005066

MPN:

1552

Condition:

New

Save More With Volume Discounts…

Buy 5 - 9	$46.22 each
Buy 10 or above	$44.80 each

Description
Additional Information
Additional Resources

Description

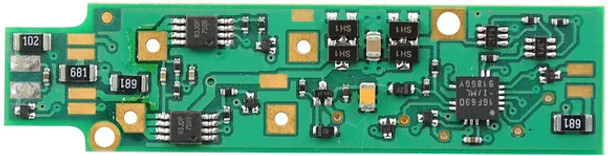

TCS 1552 IMFP4-NF DCC Decoder - N Drop-in Board for Post-2014 InterMountain FP7A with wired motors

The IMFP4-NF is a N-scale drop-in decoder which is designed for InterMountain FPA-unit locomotives. Examples include the following:

InterMountain:

FP7A
FP9A

See the installation pages for a full list of compatible engines!

NOTE: This version of the IMFP4 is designed for the newer style InterMountain frame where the motor is connected to the control board via wires instead of the brass feet.

Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
Variable Momentum: Allows you to make custom acceleration and deceleration curves.
LED Support: This product does not require external resistors when connecting LED's.
Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible: Fully compatible with Airwire™ operation.
User-Loadable Speed Tables: Configure custom speed curves and set speed limits.

Specs

Interface Type: Drop-In
Dimensions (L x W x H): 2.207" x 0.551" x 0.179" or 56.05mm x 14mm x 4.54mm
Scale: N Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 4
Function Rating: 80 mA
12V Outputs: 4
LED Outputs: 4

Decoder Specifications:

Size: 2.20 x 0.55 x 0.18 Inch (56.1 x 14.0 x 4.6 mm)
Connection: Drop-In
Motor Rating: 1.0 Amp Continuous, 2.0 Amp Peak
Functions: (4) 80mA outputs (320mA Total)
BEMF: Yes
Protocol: NMRA DCC Compliant
Additional Features:

View AllClose

Additional Resources

MANUFACTURERS WEBSITE:	https://www.tcsdcc.com/product-page/imfp4-nf
SOUND CONFIGURATION & SOUND FILE RESOURCES:	https://drupal.tcsdcc.com/dv4prime
FIRMWARE & SOFTWARE RESOURCES:	https://www.tcsdcc.com/firmware
PRODUCT MANUALS & TECHNICAL DOCUMENT RESOURCES:	https://www.tcsdcc.com/documentation
MANUFACTURERS WARRANTY & REPAIRS:	https://www.tcsdcc.com/product-page/warranty
ADDITIONAL INFORMATION - DCC TIPS:	https://sbs4dcc.com/pages/dcc-tips.html
ADDITIONAL INFORMATION (1):	https://drupal.tcsdcc.com/SV4
ADDITIONAL INFORMATION (2):	NA

View AllClose

Additional Information

PRODUCT CLASS :	N Scale - Board Replacement
DECODER TYPE:	Motor + Function
DECODER INTERFACE (PRIMARY):	Drop-In - Solder Pads
DECODER INTERFACE (SECONDARY):	NA
SIZE-INCH (L x W x H):	2.21 x 0.55 x 0.18 in
SIZE-METRIC (L x W x H):	56.1 x 14 x 4.6 mm
MOTOR CURRENT (CONTINUOUS):	1A
MOTOR CURRENT (PEAK):	2A
FUNCTION CURRENT (MAX):	80mA each
NORMAL OUTPUT FUNCTIONS:	4*
LOGIC-LEVEL FUNCTIONS:	0
SERVO OUTPUT FUNCTIONS:	0
FUNCTION INPUTS:	0
KEEP-ALIVE INTERFACE:	NA
KA INPUT VOLTAGE (MAX):	NA
KA TOTAL CAPACITANCE:	NA
CV PROGRAMMING:	Service Mode + P.O.M.
FIRMWARE UPDATE:	No
PROTOCOL:	NMRA DCC
BI-DIRECTIONAL COMMUNICATION:	RailCom
ADDITIONAL FEATURES:	NA
NOTES (1):	* - 4x function outputs with integrated 1k ohm resistors for LEDs
NOTES (2):	NA
