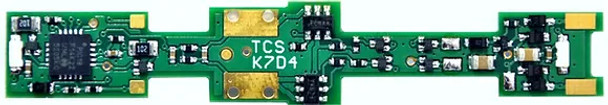

TCS 1673 K7D4 DCC Decoder - N Drop-in Board for Kato ACS-64, SDP40F, and Glacier Express

(No reviews yet) Write a Review
UPC:
879508006285
MPN:
1673
Condition:
New

Save More With Volume Discounts…

Buy 5 - 9 $46.22 each
Buy 10 or above $44.80 each
  • TCS 1673 K7D4 DCC Decoder - N Drop-in Board for Kato ACS-64, SDP40F, and Glacier Express
  • TCS 1673 K7D4 DCC Decoder - N Drop-in Board for Kato ACS-64, SDP40F, and Glacier Express
MSRP: $58.95
Price: $47.16
— You save $11.79

Description

TCS 1673 K7D4 DCC Decoder - N Drop-in Board for Kato ACS-64, SDP40F, and Glacier Express

The K7D4 is a 4-function N-scale drop-in decoder designed to fit Kato locomotives. Examples include the following:

Kato:

  • ACS-64
  • EMD SPD40F
  • Ge 4/4 II and III "Glacier Express"
See the installation pages for a full list of compatible engines!
  • Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
  • Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
  • DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
  • RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
  • Variable Momentum: Allows you to make custom acceleration and deceleration curves.
  • LED Support: This product does not require external resistors when connecting LED's.
  • Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
  • Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
  • Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
  • Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
  • Airwire™ Compatible: Fully compatible with Airwire™ operation.
  • User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
Specs
  • Interface Type: Drop-In
  • Dimensions (L x W x H): 2.353" x 0.413" x 0.071" or 59.77mm x 10.49mm x 1.81mm
  • Scale: N Scale
  • Continuous/Peak: 1.0/2.0 Amp
  • Total Functions: 4
  • Function Rating: 80 mA
  • 12V Outputs: 2
  • Onboard LEDs: 2

Decoder Specifications:

  • Size: 2.34 x 0.49 x 0.10 Inch (59.5 x 12.5 x 2.5 mm)
  • Connection: Drop-In for Kato ACS-64
  • Motor Rating: 1.0 Amp Continuous, 2.0 Amp Peak
  • Functions: (6) 80mA outputs (480mA Total)
  • BEMF: Yes
  • Protocol: NMRA DCC Compliant
  • Additional Features:  On-board 1000 ohm 1/4 watt resistors for LED lighting



View AllClose

Additional Resources

MANUFACTURERS WEBSITE:
https://www.tcsdcc.com/product-page/k7d4
SOUND CONFIGURATION & SOUND FILE RESOURCES:
https://drupal.tcsdcc.com/dv4prime
FIRMWARE & SOFTWARE RESOURCES:
https://www.tcsdcc.com/firmware
PRODUCT MANUALS & TECHNICAL DOCUMENT RESOURCES:
https://www.tcsdcc.com/documentation
MANUFACTURERS WARRANTY & REPAIRS:
https://www.tcsdcc.com/product-page/warranty
ADDITIONAL INFORMATION - DCC TIPS:
https://sbs4dcc.com/pages/dcc-tips.html
ADDITIONAL INFORMATION (1):
https://drupal.tcsdcc.com/SV4
ADDITIONAL INFORMATION (2):
NA
View AllClose

Additional Information

PRODUCT CLASS :
N Scale - Board Replacement
DECODER TYPE:
Motor + Function
DECODER INTERFACE (PRIMARY):
Drop-In - Solder Pads
DECODER INTERFACE (SECONDARY):
NA
SIZE-INCH (L x W x H):
2.35 x 0.41 x 0.07 in
SIZE-METRIC (L x W x H):
59.8 x 10.5 x 1.9 mm
MOTOR CURRENT (CONTINUOUS):
1A
MOTOR CURRENT (PEAK):
2A
FUNCTION CURRENT (MAX):
80mA each
NORMAL OUTPUT FUNCTIONS:
4*
LOGIC-LEVEL FUNCTIONS:
0
SERVO OUTPUT FUNCTIONS:
0
FUNCTION INPUTS:
0
KEEP-ALIVE INTERFACE:
NA
KA INPUT VOLTAGE (MAX):
NA
KA TOTAL CAPACITANCE:
NA
CV PROGRAMMING:
Service Mode + P.O.M.
FIRMWARE UPDATE:
No
PROTOCOL:
NMRA DCC
BI-DIRECTIONAL COMMUNICATION:
RailCom
ADDITIONAL FEATURES:
NA
NOTES (1):
* - 2x integrated LEDs on F0F/F0R + 2x function outputs with integrated 1k ohm resistors for LEDs
NOTES (2):
NA
