TCS 1765 WOW Kit WDK-INT-2 with WOW121-Diesel DCC Sound Decoder for InterMountain Models

(No reviews yet) Write a Review
UPC:
879508006438
MPN:
1765
Condition:
New

Save More With Volume Discounts…

Buy 5 - 9 $136.38 each
Buy 10 or above $132.20 each
  • TCS 1765 WOW Kit WDK-INT-2 with WOW121-Diesel DCC Sound Decoder for InterMountain Models
  • TCS 1765 WOW Kit WDK-INT-2 with WOW121-Diesel DCC Sound Decoder for InterMountain Models
MSRP: $173.95
Price: $139.16
— You save $34.79

Description

TCS 1765 WOW Kit WDK-INT-2 with WOW121-Diesel DCC Sound Decoder for InterMountain Models


Each WOWKit has been engineered for a perfect fit in your locomotive. Even if you are new to DCC or DCC installations, you can achieve Easy, Clean, Professional results using WOWKits. WOWKits make sound installation as simple and all-inclusive as possible. A list of compatible locomotives for this WOWKit can be found in the "Compatibility" tab.

The TCS website features step-by-step installation pictures and instructions for each WOWKit. Visit the installation pages and search by locomotive.

This kit fits the following locomotives:

InterMountain:

  • FT A/B
  • F7A
  • ES44DC

More locomotives being added to this list as they are confirmed.

Included in this WOWKit:

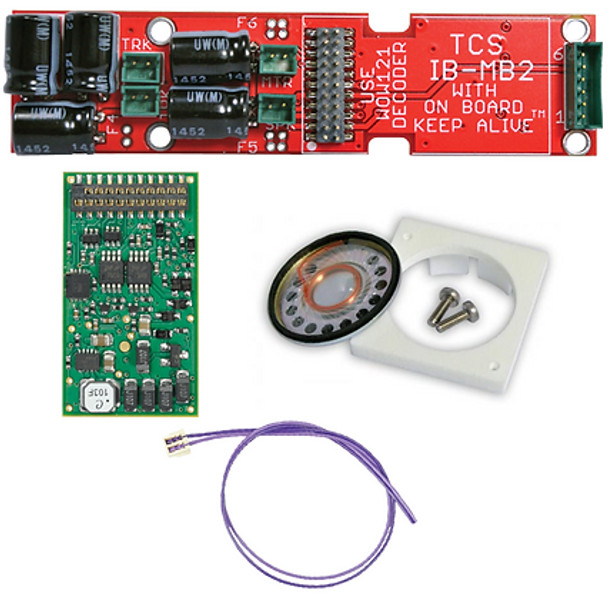

  • 1x WOW121-Diesel Decoder
  • 1x IB-MB2 Motherboard
  • 1x INT-SH2 WOWSpeaker Housing
  • 1x 28mm WOWSpeaker
  • 1x 2-Pin JST Speaker Connector

WOWKits provide everything needed for a complete sound installation.



TCS WOWSound DCC Sound Decoder - WOW121-Diesel


The WOW121 is a universal sound decoder for locomotives with DCC-ready 21-pin MTC connectors, and can also be used with any of TCS' motherboards. The WOW121 requires a motherboard to interface with the locomotive. The motherboard will determine the support for the number of lighting functions as well as the type supported (LED or 12V/1.5V bulbs). A WOW121 decoder will support up to 8 lighting functions.

Note: Function 5 and 6 are not programmable, and will only output constant bright lights. Take this into account when wiring multiple lighting functions.

For a complete list of available sounds, check out the "Sounds List" under the "Documents" tab.

  • CD-Quality Sound: TCS' world-renowned CD-quality sound. 16 Bits of resolution at 44.1kHz sample rate.
  • Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
  • Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
  • Variable Momentum: Allows you to make custom acceleration and deceleration curves.
  • Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
  • Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
  • Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
  • Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
  • Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
  • Airwire™ Compatible: Fully compatible with Airwire™ operation.
  • Audio Assist®: TCS exclusive auditory feedback programming system. Program your decoder without the need tomemorize CV's!
  • User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
  • Throttle Modes: Choose from multiple throttle modes to meet your operating needs.
  • Proto Notch™: A WOWSound original feature which uses TCS’ exclusive auto-adjusting BEMF technology to automatically choose the active notch sound. Prototype Mode also offers dynamic sound volumes which accurately model the real-life equivalent. Also includes pre-programmed acceleration and deceleration values.
Specs
  • Interface Type: Hard-Wire Direct-Plug (9-Pin JST)
  • Dimensions (L x W x H): 1.35" x 0.658" x 0.22" or 34.29mm x 16.72mm x 5.59mm
  • Scale: HO Scale
  • Continuous/Peak: 1.3/2.0 Amp
  • Total Functions: 6
  • Function Rating: 100 mA
  • 12V Outputs 6

Speaker Selection

  • This decoder is optimized for 8 Ω speakers (not included).
  • This decoder uses and audio amplifier capable of supplying up to 2 Watts of power to an 8 Ohm load at maximum volume. An 8 Ohm speaker with a 1 Watt minimum power rating is recommended for use with this decoder as it comes out of the package. If you are using an 8 Ohm speaker with a power rating of 2 Watts or less, you must reduce your master volume to prevent speaker failure or amplifier stress.
  • The amplifier(s) on a WOWSound product can support speakers with impedance ratings as low as 4 Ohms. A reduction in impedance will require a higher power dissipation rating (more Watts) on said speaker. The minimum power requirement for a 4 Ohm speaker is 4 Watts. If you are using a 4 Ohm speaker with a power rating of 4 Watts or less, you must reduce your master volume to prevent speaker failure or amplifier stress.
  • Speaker enclosures greatly increase speaker performance in most cases - improving the apparent volume by more efficiently directing the flow of air and reducing or eliminating destructive interference.

Decoder Specifications:

  • Size: 1.28" x .69" x .22" (32.5mm x 17.5mm x 5.6mm)
  • Connection: Integral 21-MTC connector
  • Motor Rating: 1.0 Amp Continuous, 2.0 Amp Peak
  • Functions: (6) 100mA outputs (400mA Total)
  • BEMF: Yes
  • Protocol: NMRA DCC Compliant
  • Additional Features:



View AllClose

Additional Resources

MANUFACTURERS WEBSITE:
https://www.tcsdcc.com/product-page/wdk-int-2
SOUND CONFIGURATION & SOUND FILE RESOURCES:
https://drupal.tcsdcc.com/dv4prime
FIRMWARE & SOFTWARE RESOURCES:
https://www.tcsdcc.com/firmware
PRODUCT MANUALS & TECHNICAL DOCUMENT RESOURCES:
https://www.tcsdcc.com/documentation
MANUFACTURERS WARRANTY & REPAIRS:
https://www.tcsdcc.com/product-page/warranty
ADDITIONAL INFORMATION - DCC TIPS:
https://sbs4dcc.com/pages/dcc-tips.html
ADDITIONAL INFORMATION (1):
https://drupal.tcsdcc.com/SV4
ADDITIONAL INFORMATION (2):
NA
View AllClose

Additional Information

PRODUCT CLASS :
HO Scale - Board Replacement
DECODER TYPE:
Motor + Sound + Function + Adapter Board + Keep Alive Device
DECODER INTERFACE (PRIMARY):
Drop-In - Solder Pads
DECODER INTERFACE (SECONDARY):
NEM660 - 21MTC
SIZE-INCH (L x W x H):
2.83 x 0.71 x 0.31 in
SIZE-METRIC (L x W x H):
72 x 18 x 8 mm
MOTOR CURRENT (CONTINUOUS):
1.3A
MOTOR CURRENT (PEAK):
2A
FUNCTION CURRENT (MAX):
100mA each
NORMAL OUTPUT FUNCTIONS:
8
LOGIC-LEVEL FUNCTIONS:
0
SERVO OUTPUT FUNCTIONS:
0
FUNCTION INPUTS:
1
KEEP-ALIVE INTERFACE:
Integrated KA5 on Adapter Board
KA INPUT VOLTAGE (MAX):
16V
KA TOTAL CAPACITANCE:
2.5F
SPEAKER INTERFACE:
Hardwire - Solder Pad
SOUND CHANNELS:
7
SOUND PROCESSOR:
16-bit
SAMPLE RATE:
44.1 kHz
SOUND MEMORY:
Preloaded
AMP POWER (MAX):
2W
AMP IMPEDANCE:
8 Ohms
CV PROGRAMMING:
Service Mode + P.O.M.
FIRMWARE UPDATE:
Yes - Factory Only
SOUND FILE UPDATE:
Optional CV Configurations by Model
PROTOCOL:
NMRA DCC
BI-DIRECTIONAL COMMUNICATION:
RailCom
ADDITIONAL FEATURES:
Complete install kit
